Structure

The MAXSpline Shaft is compatible with the REV ION System. The shaft is an extruded aluminum MAXSpline that provides a high strength alternative to 1/2in hex shaft that can interface with any REV ION System components with a MAXSpline bore. The...

1in Brackets are compatible with the REV ION System and feature #10 clearance holes on a 1/2in pitch. Using these brackets with any of our MAXTube or ION Extrusion allows for easy construction of robot frames, mechanisms, and structure. Lap Joint...

Dead Axle Tube is compatible with the REV ION System and can be used with 3/4in Needle Bearing Carrier (REV-21-2385) and MAXSpline Shaft (REV-21-2520) as the dead axle in a dead axle roller. Can also be used with custom rollers and as...

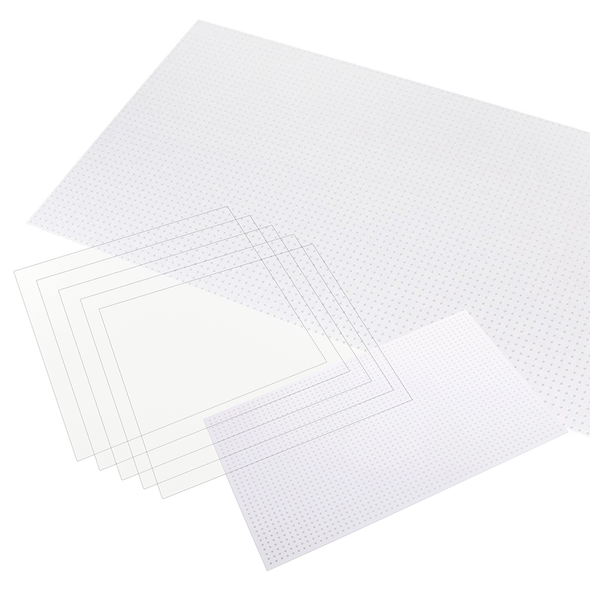

The REV Polycarbonate Sheet 3mm 1/2in Grid Pattern 47in x 23in is a lightweight, clear, and durable plastic material designed for fast and flexible robot construction. Featuring a grid of pre-cut holes on a 1/2in spacing that matches the REV ION pitch,...

The MAXSpline Shaft - Polycarbonate brings the versatility of the MAXSpline profile to lightweight mechanisms where reducing mass is a priority. Designed for intakes, conveyors, and other low load assemblies, this shaft provides an easy way to build...

The Adjustable Tube Mount is a precision machined aluminum bracket designed to give teams fine control over how 2x1 MAXTube attaches to robot structure. Three center counterbored holes allow a MAXTube Endcap to bolt on flush, creating a clean mounting...

The 1in Basic Corner Bracket is a compact, low profile solution for strengthening MAXTube joints or adding simple mounting points where space is limited. Its 5mm thick aluminum construction provides dependable stiffness without the added bulk of a...

The 1in Angled Corner Bracket is a compact, heavy duty solution for reinforcing MAXTube joints and building rigid structures in tight spaces. Its 5mm thick aluminum body provides consistent strength, while the integrated angle dramatically boosts joint...

MAXTube Endcaps are designed for seamless integration with the REV ION System, providing a simple and effective solution for joining two or more MAXTube extrusions. These endcaps are pre-tapped for #10-32 hardware, ensuring quick assembly and reliable...

MAX Pattern Plates are compatible with the REV ION System and feature the all-new MAX Pattern: a MAXSpline bore surrounded by #10 clearance holes on a 0.5in grid. The plates are available in various lengths, with the pattern repeating every 2in...

MAXTube Internal Supports are compatible with the REV ION System and facilitate bolt-through assembly within a MAXTube without causing permanent deformation. Crucial for ensuring structurally sound through-bolted joints and allows multiple supports to be...

MAXSpline Shaft Endcaps are compatible with the REV ION System and transform your MAXSpline Shaft extrusion into a live axle driven by a 1/2in Hex shaft. MAXSpline Shaft Endcaps come in two different materials: a durable plastic version and an upgraded...

Tube Nuts for 3/4in Dead Axle Tube are compatible with the REV ION System. This #10-32 tube nut presses into the end of the tube and supplies a tapped hole for easy mounting. Typically used with dead axle applications. The left-hand threaded...

These ION Motor Brackets are compatible with the REV ION System. The ION UltraPlanetary Face Mount Bracket (REV-21-2046) allows for easy mounting of our UltraPlanetary Gearbox to any of our MAXTube products. Each plate features 2x #10-32 tapped inserts...

The Aluminum Angle 0.74in x 0.74in is a robust and lightweight solution for attaching and connecting components in your robot design. Made from the same clear anodized aluminum as MAXTube, this angle iron-shaped extrusion is designed for compatibility...

The MAXPlanetary Double Motor Adapter seamlessly integrates with the REV ION Build System, enabling the side-by-side mounting of MAXPlanetaries, UltraPlanetaries, or SPARK Flex/NEO Vortex combos onto MAXTube - 2x1 with MAX Pattern. This compact solution...

The Ballast Block - 3in x 2in x 1in is a steel weight block weighing 1.42 pounds (643g), designed for easy integration with the ION Build System. It features a staggered hole pattern with twenty (20) #10-32 counterbored through holes and twenty (20)...

MAXTube is compatible with the REV ION System and is a strong extruded aluminum tubing that features various hole patterns that make robot structures easier to build. Hole patterns range from simple #10 clearance hole grid patterns to a repeated MAX...

MAXTube 2x1 is durable, extruded aluminum tubing optimized for robot structures and fully compatible with the REV ION System. It features #10 clearance holes spaced 0.5 inches apart on all 1-inch sides and offers multiple configurations: solid, grid...

MAXTube 1x1 is a versatile, extruded aluminum tubing designed for building strong, reliable robot structures. Fully compatible with the REV ION System, it features #10 clearance holes spaced 0.5 inches apart on all four sides, simplifying design and...
