Electronics

The DUO Control Bundle offers basic FTC-legal control system components to get an existing robot up and running. Pair the DUO Control Bundle with the DUO EDU Mechanical Kit (REV-45-2708) to get started with our curriculum, Intro to Robotics V2...

Now featuring the REV Driver Hub, an easy to use, dependable, and durable device designed for interfacing with the Control Hub. Featuring an Android operating system and built-in dual band Wi-Fi, this device makes getting your robot running easier...

The REV USB PS4 Compatible Gamepad is compatible with both the REV DUO and REV ION Systems. Plug the REV Gamepad directly into a Driver Hub to enable feature rich control of your robot. Additionally, when plugged into a PC, it offers an Xbox...

The JST PH 6-pin Joiner Boards (REV-11-1277-PK4)  are intended to be used with the JST PH 6-pin Extension Cables to extend the reach of your NEO Brushless Motor sensor cables. The JST VH 2-pin Joiner Board - 4 Pack (REV-31-1429-PK4) are small...

The USB-A to USB-C 2.0 Cable - 2m (REV-11-1232) is a longer version of the USB-A to USB-C cable included with the SPARK MAX Motor Controller and the Control Hub. Use this cable to connect your SPARK MAX or Control Hub to a standard computer from up to 2...

The 8cm long Anderson Power Pole style connector to Female XT30 adapter cable (REV-31-1385-PK20) is used to covert team-modified battery connectors to the new XT30 connector.  Teams that already own and use the Anderson Powerpole Crimper may...

12V Slim Battery Accessories help keep your REV 12V Slim Batteries securely mounted, charged, and ready to power your robot. This product family includes the Battery Holder Plate for mounting a REV 12V Battery, Control Hub, or Expansion Hub, as well as...

The 36in PWM Cable - 4 Pack (REV-11-1130-PK4) is an ideal servo extension, providing a 3ft reach for servos, sensors, and other PWM-controlled devices. Featuring a universal 3-pin design with a female connector on one end and a male connector on the...

These Ferrite Cable Clips help prevent electromagnetic interference (EMI). They can be clipped around USB and other data cables that are being used in electrically noisy environments.

The Digital LED Indicator is a LED signal module that is digitally controlled (active low) and offers three colors: red, green, and amber. The Digital LED Indicator is designed to directly interface with the DIO ports of the Expansion Hub or Control Hub...

Touch sensor is best used for user input, but can also be used as a limit switch.  Configuration The REV Touch Sensor is a digital sensor that is wired to the N+1 channel on our standard 4-pin JST PH connector. In other words, the REV Expansion Hub...

Use these connectors to create your own custom length power wires. The XT30 Connector uses a solder cup instead of a crimping tool to connect the contact to a wire.

The analog and digital ports on the Control Hub and Expansion Hub combine two sensor inputs into one connector to save space. Single sensors plugged directly into these ports will work, but they will block access to the second input. The Sensor Splitter...

This 10K potentiometer can be used as an analog sensor with the Control Hub or Expansion Hub. This potentiometer has a 270 degree range of motion and can be mounted to any REV DUO brackets with the Motion Pattern, like the Motion Bracket. The...

The REV Through Bore Encoder V2 provides precise, reliable shaft position measurement with both incremental (ABI quadrature) and absolute (pulse-width) outputs. Its ½" hex through bore mounts easily within common FRC/FTC mechanisms, and the...

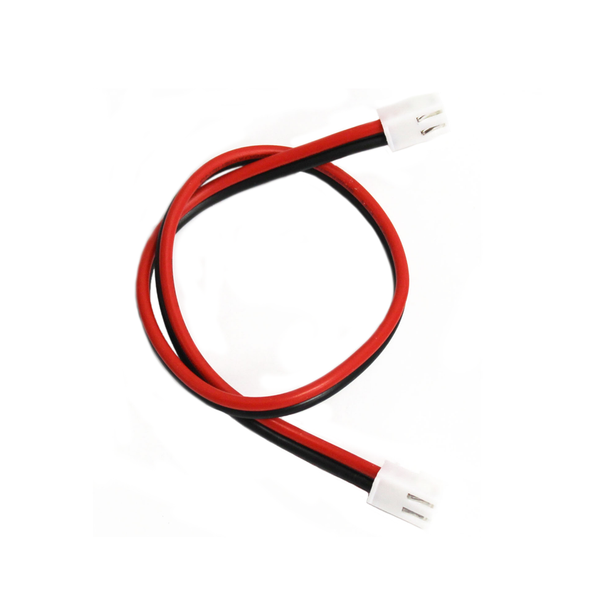

The 2-pin JST VH Cable is keyed and locking for improved reliability.  Expansion Hub 2-pin JST VH Connections: Motor Power Product Options  SKU   PRODUCT NAME   REV-31-1412-PK4   JST VH 2-pin Motor Cable -...

The 3-pin JST PH Cable is keyed and locking for improved reliability. Use this cable along with an XT30 Extension cable to connect a second REV Robotics Expansion Hub. Expansion Hub 3-pin JST PH Connections: RS485 - Daisy-chain communication to a second...

The XT30 Extension Cable is keyed and locking for improved reliability. Use this cable along with an 3-pin JST PH Cable to connect a second REV Robotics Expansion Hub. Expansion Hub XT30 Connections: Power, One Male and One Female XT30...

The 4-pin JST PH Cable is keyed and locking for improved reliability.  Expansion Hub 4-pin JST PH Connections: Motor Encoder Digital Analog I2C Product Options  SKU   PRODUCT NAME   REV-31-1407-PK4   JST PH...

The REV Servo Hub is compatible with both the REV ION and REV DUO systems. Over a single communication interface it can provide advanced control of up to six (6) servos. This means that the Servo Hub needs no additional PWM cabling between it and your...
