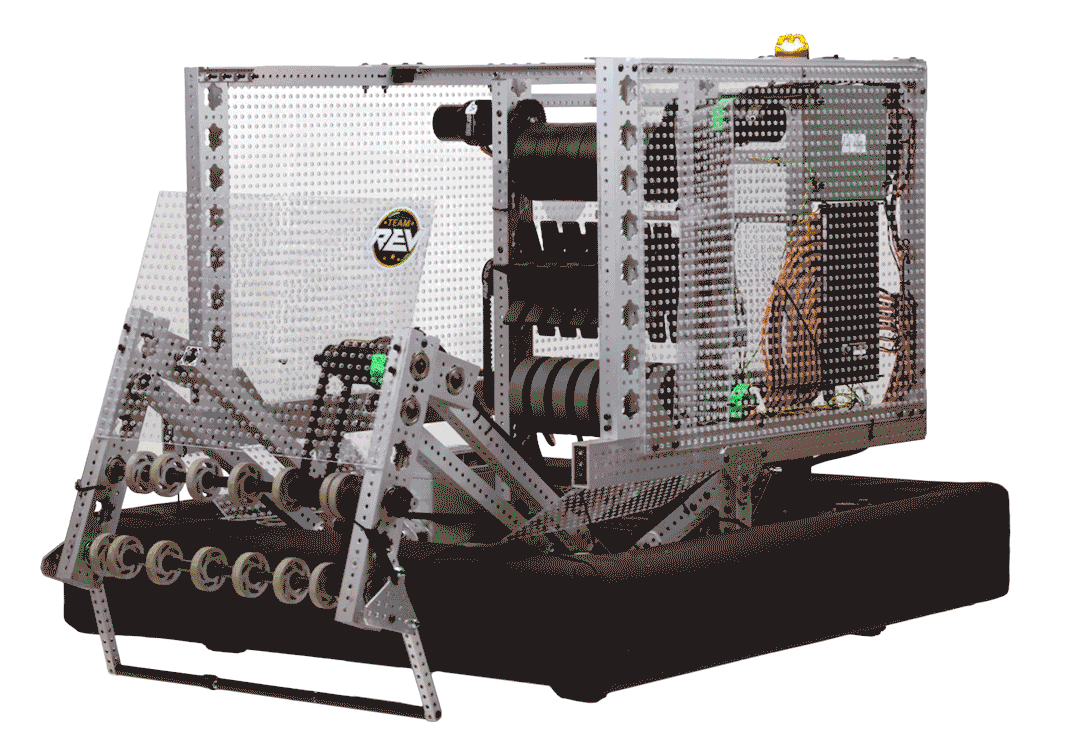

2024 REV ION FRC Starter Bot

20DP Gears are compatible with the REV ION System and come in a wide range of sizes and bores. Larger gears feature #10 clearance holes arranged in a 2-inch bolt circle pattern. A notch on the bore provides an easy visual indicator to ensure gears on the...

MAX Pattern Plates are compatible with the REV ION System and feature the all-new MAX Pattern: a MAXSpline bore surrounded by #10 clearance holes on a 0.5in grid. The plates are available in various lengths, with the pattern repeating every 2in...

The 8mm Shaft Spacer is compatible with the REV ION System and is a convenient way to space pinions and gears along the shaft of the NEO Brushless Motor. The 8mm Shaft Spacer is bigger than the 1/2in Hex Adapter and can help keep...

The 1/2in Hex Bore Shaft Collars are used to prevent gears, sprockets, wheels, and other parts from sliding out of place on a 1/2in hex shaft. All REV 1/2in Hex Bore Shaft Collars feature a boss, or bump out, to contact the inner race of bearings that...

3/16in Rivets are compatible with the REV ION System are perfect for a variety of applications where a strong, permanent joint is required. Place the rivet into a hole from a single side (a “blind” hole) and then use a rivet...

These Low Profile Nylon Lock Nuts are thin enough to fit inside the channel of the ION 1in Extrusion. The embedded nylon ring provides tight vibration resistant hold on the threads of the screw. Specifications Material: Zinc-plated Steel Diameter &...

The MAX 180 Degree Gearbox is compatible with the REV ION System and is designed to give you extra flexibility in your robot construction. Engineered to let you flip your motor 180 degrees to the output, optimizing space for tighter packaging. This...

The 1in Pivot Joint is compatible with the REV ION System. Create a pivot joint at the end of a piece of MAXTube - 1x1 with Grid Structure. Specifications Material: POM (Acetal/Delrin) Documentation REV ION Build System Documentation Introduction...
