Brackets

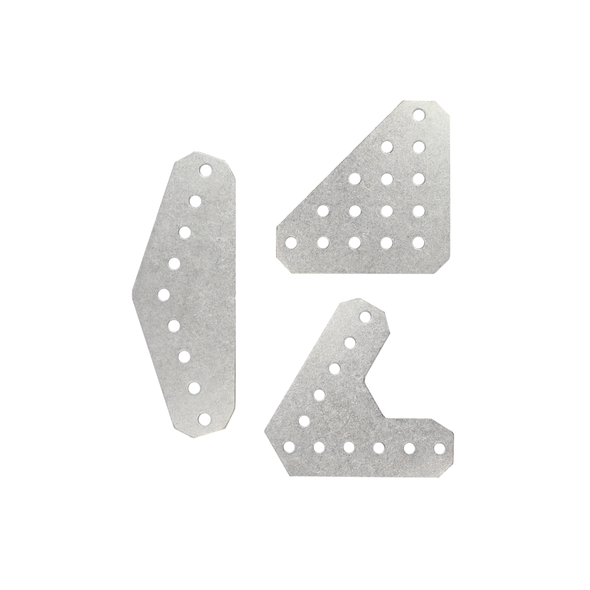

1in Brackets are compatible with the REV ION System and feature #10 clearance holes on a 1/2in pitch. Using these brackets with any of our MAXTube or ION Extrusion allows for easy construction of robot frames, mechanisms, and structure. Lap Joint...

The Adjustable Tube Mount is a precision machined aluminum bracket designed to give teams fine control over how 2x1 MAXTube attaches to robot structure. Three center counterbored holes allow a MAXTube Endcap to bolt on flush, creating a clean mounting...

The 1in Basic Corner Bracket is a compact, low profile solution for strengthening MAXTube joints or adding simple mounting points where space is limited. Its 5mm thick aluminum construction provides dependable stiffness without the added bulk of a...

The 1in Angled Corner Bracket is a compact, heavy duty solution for reinforcing MAXTube joints and building rigid structures in tight spaces. Its 5mm thick aluminum body provides consistent strength, while the integrated angle dramatically boosts joint...

These ION Motor Brackets are compatible with the REV ION System. The ION UltraPlanetary Face Mount Bracket (REV-21-2046) allows for easy mounting of our UltraPlanetary Gearbox to any of our MAXTube products. Each plate features 2x #10-32 tapped inserts...

The Aluminum Angle 0.74in x 0.74in is a robust and lightweight solution for attaching and connecting components in your robot design. Made from the same clear anodized aluminum as MAXTube, this angle iron-shaped extrusion is designed for compatibility...

The MAXPlanetary Double Motor Adapter seamlessly integrates with the REV ION Build System, enabling the side-by-side mounting of MAXPlanetaries, UltraPlanetaries, or SPARK Flex/NEO Vortex combos onto MAXTube - 2x1 with MAX Pattern. This compact solution...

The Ballast Block - 3in x 2in x 1in is a steel weight block weighing 1.42 pounds (643g), designed for easy integration with the ION Build System. It features a staggered hole pattern with twenty (20) #10-32 counterbored through holes and twenty (20)...

The Differential Drivetrain Bumper Bracket Kit is compatible with the REV ION System and is designed to be a quick and convenient way to install FRC legal bumpers on the REV ION West Coast Drivetrain or even an AM14U based drivetrain with...
