Motion

The NEO Pinions are used for transferring power from a NEO Brushless Motor or something with a similar matching shaft to a mechanism. These pinions come in three different types; either gear, sprocket, or pulley. The pinion gears are compatible with 20DP...

The REV Hub Adapter MAXSpline to 1/2in Hex makes it fast and easy to convert MAXSpline based wheels, sprockets, and other ION components to a standard 1/2in hex drive interface. Designed for flexibility and ease of use, these split adapters press...

These spare parts are designed specifically to self service and maintain your 3in MAXSwerve Module (REV-21-3005). Created for efficient repairs and upkeep, routinely servicing your 3in MAXSwerve Module with spare parts will enhance performance and...

The Stepped Bushing - 3/4in ID is compatible with the REV ION System. This bushing used in conjunction with the MAXSpline Shaft and Dead Axle Tube - 3/4in can be used to build robust and effective rollers and intakes...

These MAXPlanetary Input Couplers are compatible with the REV ION System. The MAXPlanetary 1/2in Hex Input Coupler (REV-21-2110) attaches to the end of a hex shaft, securely held in place by a screw, enabling the MAXPlanetary to be powered by a hex shaft...

Commonly included with our gearboxes and pinion options, the 8mm Keyed Shaft Retaining Hardware Pack is compatible with the REV ION System and includes the hardware needed to retain 2mm keyed elements to 8mm OD shafts without the bulk of alternative...

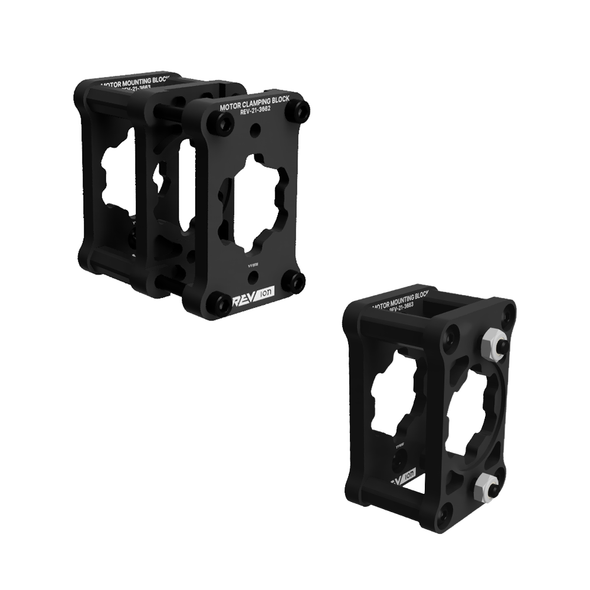

The ION Motor Mounting Blocks family offers two options for securely mounting motors and supporting extended shafts within robot mechanisms. Both versions use aluminum plates with integrated MAXSpline bores and bearing pockets, providing a consistent...

The 4in Spiky Wheel Tread 8 Pack provides replacement treads for teams using the 4in Spiky Wheels on their EasySwerve-equipped robots. These injection molded TPU treads feature an aggressive spiked geometry designed to maximize traction on FRC carpet...

The 8mm Shaft Spacer is a stainless steel 1/16 inch washer designed for precise shaft spacing in FRC and FTC mechanisms. Used on the NEO 2.0 Brushless Motor to achieve correct input coupler alignment in MAXPlanetary assemblies, this spacer also fits any...

The 4in Spiky Wheel Aluminum Hub is a precision machined and balanced wheel hub designed for use with the 4in Spiky Wheel system and the 4in EasySwerve Module. Built from 6061 aluminum, this hub provides a strong and reliable foundation for high-traction...

The MAXPlanetary Universal Input Stage V2 is a redesigned mounting solution for integrating a wide range of FRC motors into the MAXPlanetary System. Built as the next evolution of the original universal input stage, V2 enhances strength, expands motor...

MAXSpline Shaft Collars provide mechanical retention for components mounted on MAXSpline Shaft and use a two piece aluminum clamping design for secure attachment. Both versions are black anodized for durability and integrate cleanly within the REV ION...

The ION Round Belt System provides a simple and adaptable way to transfer power in compact robot mechanisms. Designed around a 2in outer diameter when the belt is installed, the system stays on pitch with the REV ION wheel lineup, making it easy to...

The ION Conveyor Brush System is a customizable solution for creating wide to narrow intake brushes that adapt to a variety of game pieces. The 24in brush can be cut to any length using a bandsaw or hacksaw, allowing teams to fine tune coverage and...

The 4in Spiky Wheel - Hub and Tread Bundle includes everything needed to outfit a full 4in EasySwerve drive with high-traction 4in Spiky Wheels and a complete set of replacement treads. The bundle contains four (4) precision machined aluminum hubs, eight...

The MAXSpline Shaft - Polycarbonate brings the versatility of the MAXSpline profile to lightweight mechanisms where reducing mass is a priority. Designed for intakes, conveyors, and other low load assemblies, this shaft provides an easy way to build...

The 4in EasySwerve Module is designed to bring truly accessible swerve drive performance to every FRC team. Built for simplicity, durability, and broad motor compatibility, EasySwerve removes many of the traditional barriers associated with adopting...

ION Flap Wheels are designed for intakes and conveyance that need reliable performance when interacting with irregular or variable gamepieces. Similar to compliant wheels, they provide a flexible interface, but their flap-based design introduces...

The MAXPlanetary MAXSpline Output Coupler [REV-21-3630] provides a compact and reliable way to interface a MAXPlanetary Gearbox’s 1/2 inch hex output with MAXSpline Shaft systems. Designed for teams who want the packaging efficiency of a...

The Locking MAXHub - 1/2in Hex Kit is a compact, dual plate hub system designed to secure 1/2in hex shafting inside any MAXSpline bore component. Each kit includes two identical wedge locking plates and the necessary #10-32 hardware. When the plates are...
