Description

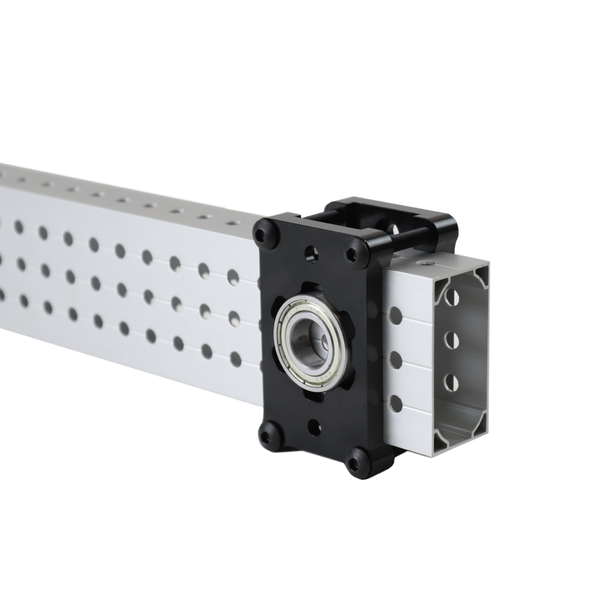

MAXSpline Bearing Blocks are compatible with the REV ION System. Quickly add bearing support to any location on REV ION extrusion without the need for precision machining. Can also be used in a west coast style drivetrain to add center wheel drop while allowing teams the ability to quickly move their wheels to their desired position that might not be on MAX Pattern pitch.
Specifications
- Material: Aluminum 6061
- Finish: Black Anodized
- MAXSpline bore
- Bearing flange pocket
- #10 screw clearance holes on 2in spacing for mounting
- Overall Width: 40.5mm (1.59in)

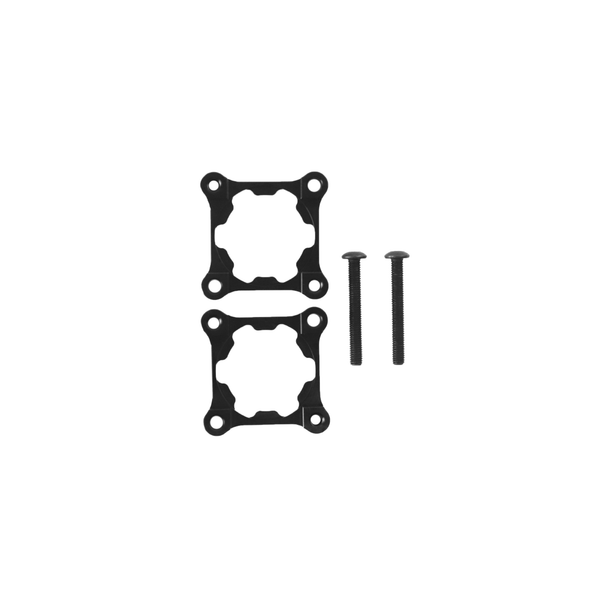

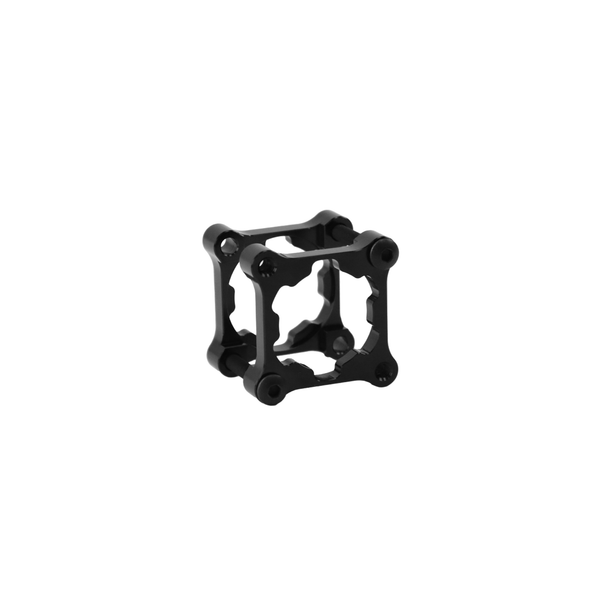

- MAXSpline 1x1 Bearing Block
- Overall Length: 44.5mm (1.75in)
- Overall Height: 44.5mm (1.75in)
- Weight: 41.5g (0.091lbs)

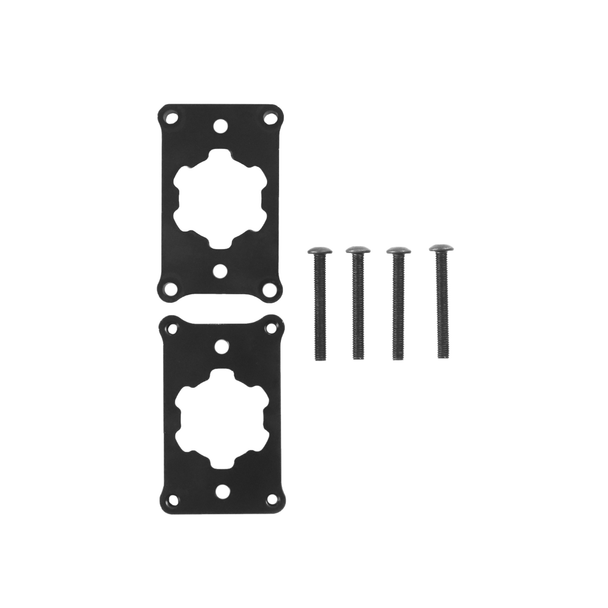

- MAXSpline 2x1 Bearing Block
- Overall Length: 44.5mm (1.75in)
- Overall Height: 70mm (2.75in)
- Weight: 84g (0.185lbs)
Documentation
Product Options
| SKU | PRODUCT NAME | CAD & DRAWINGS |
| REV-21-2550 | MAXSpline 2x1 Bearing Block | STEP FILE ONSHAPE DRAWING |
| REV-21-2551 | MAXSpline 1x1 Bearing Block | STEP FILE ONSHAPE DRAWING |
